Tips to Clone Chrysler PT Cruiser EDC16C2 ECU with Autel IM608

Tips to Clone Chrysler PT Cruiser EDC16C2 ECU with Autel IM608

Problem:
Chrysler PT Cruiser EDC16C2: Cloning ECU with the Autel IM608. I follow the ECU, not the badge. Can i clone this ECU with IM608 ?

Solution:

No direct ECU Cloning option.
The function may not appear where the vehicle badge suggestions.

Where is the correct path?
The 2007 PT Cruiser with a 2.2 Mercedes diesel uses a Mercedes ECU architecture (OM646).
The ECU architecture is Mercedes/bosch.

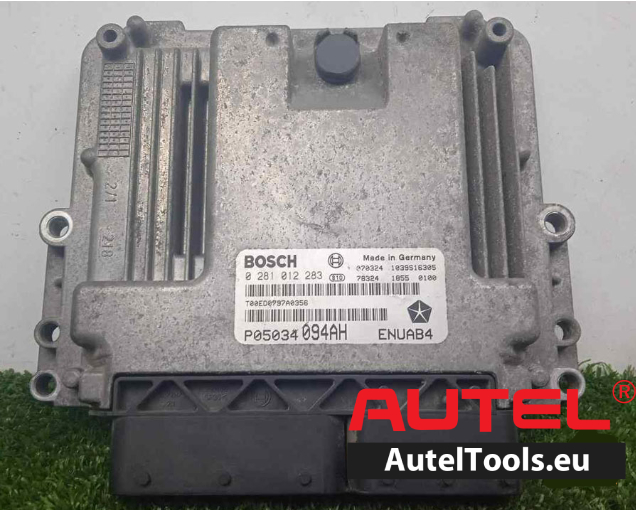

ECU identified:
Bosch EDC16C2
MPC5xx series
Mercedes OM646 platform.

The correct ECU cloning path:

Go to the Mercedes app on the Autel.

Navigate: Immobilizer-Mercedes Expert select- Engine-Control Unit.

Hardware setup

• Bench mode
• G-box3
• DB15 Cable
• Stable powder

Perform ECU data cloning:
Original unit:
Read internal flash
Read external flash
Read EEPROM, save files
Write to the donor.

Dornor Unit:
Write EEPROM
Write internal flash
Write to the external flash.
On the bench: read internal flash, external flash, and EEPROM from the original-write to the donor.

Key Takeaway: Always follow the ECU architecture, not the vehicle brand.
