step-by-step process for programming a smart key on a 2025 KIA K5 when all keys are lost, using the Autel IM608 Pro II.
This real-world locksmith job covers AKL (All Keys Lost) smart key programming, immobilizer reset, and successful key learning with professional diagnostic equipment. Perfect for automotive locksmiths, technicians, and beginners looking to learn modern KIA key programming.
Tools Used:
• Autel IM608 Pro II
• KIA K5 2025 Smart Key
• Professional Locksmith Equipment
Vehicle Info:
• Make: KIA
• Model: K5
• Year: 2025
• Key Type: Smart Key
• Condition: All Keys Lost
Step-by-Step Programming Guide
- Access Immobilizer Menu

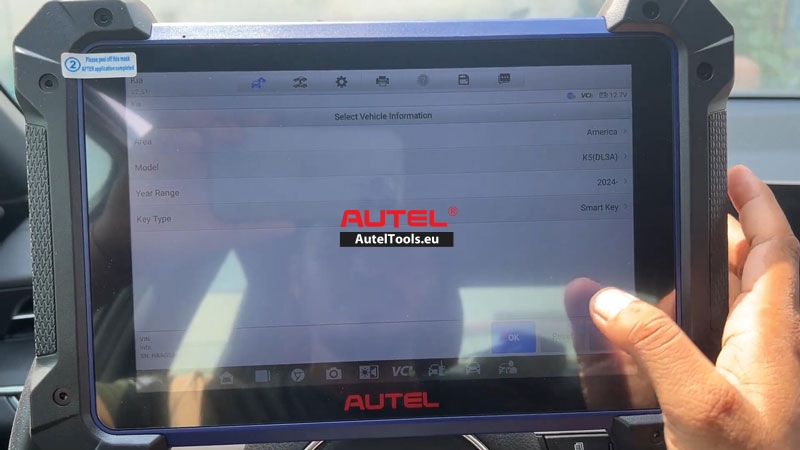

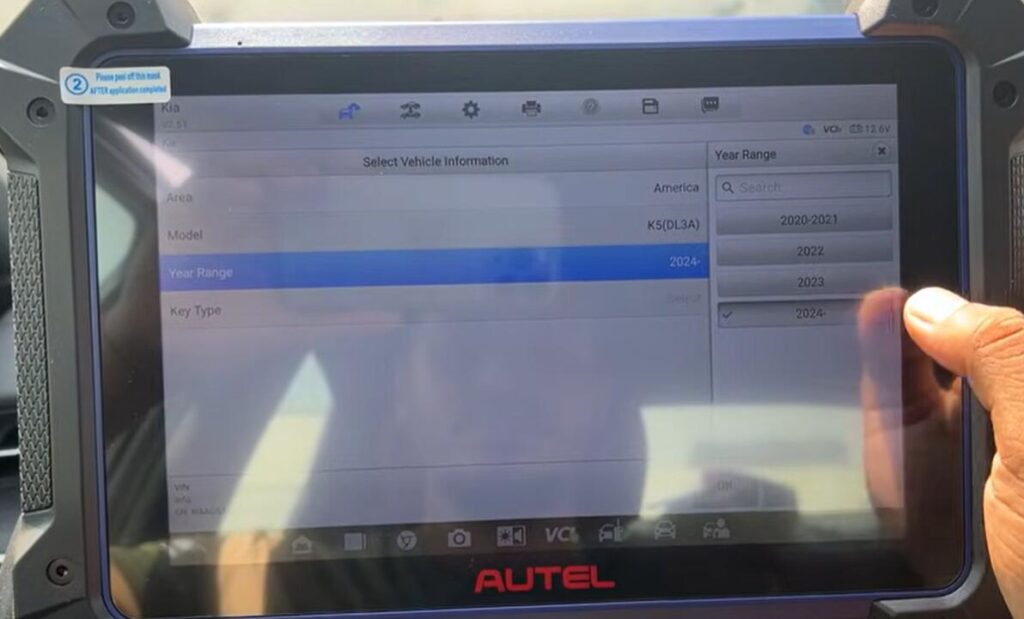

Go to: Immo → KIA → Manual Selection → America → K5 (DL3A) → 2024- → Smart Key → OK → Select Smart Key Learning → Hot Function → Smart Key Learning → Start.
This function supports Add Key and All Keys Lost.
Warning: All existing keys will be erased. Press Yes to continue.
- Prepare the Vehicle
Turn the ignition OFF (instrument screen black).
Open and close the driver door once.
- Enter Security Code

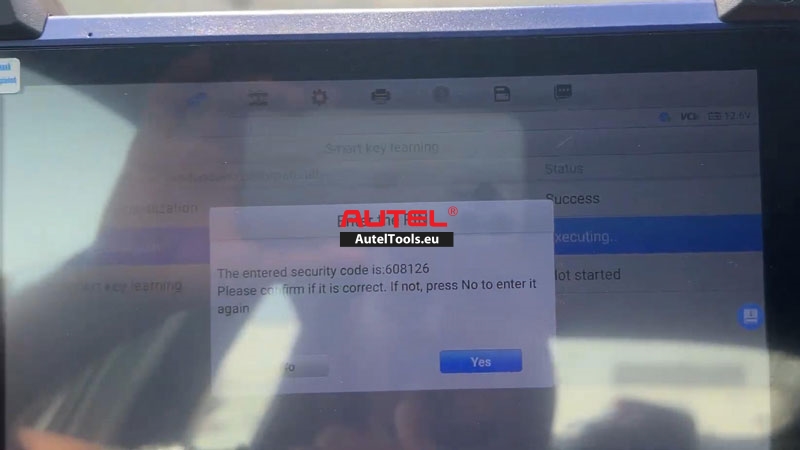

When prompted, enter the 6-digit PIN code (example: *608126*).
- Confirm Key Sensing Area
Usually the ignition switch, but on some models it may be the cup holder or another location.
Press OK, then within 5 seconds:

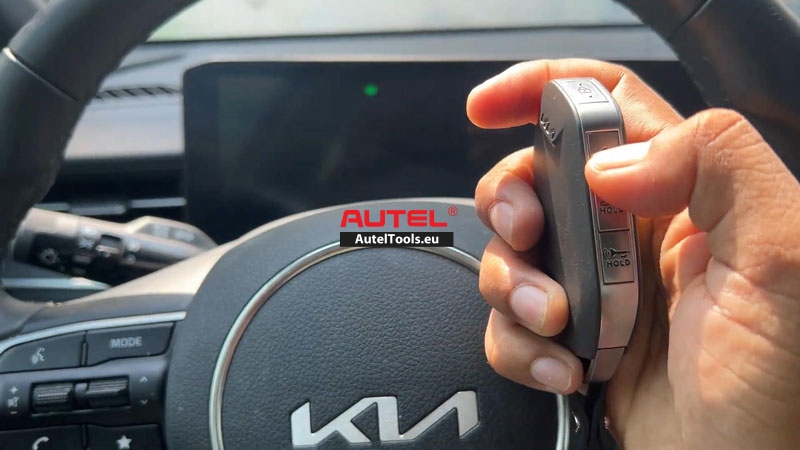

Hold the smart key against the Start/Stop button (back or top side) for 5 seconds until the security lamp flashes.
Complete Programming
After success, choose Yes to program another key or No to finish.
Test the new key to ensure it works.
✅ Done! Your 2025 KIA K5 smart key is now programmed and ready to use.
